Core Scanning (Geotek)

MODULAR AND FLEXIBLE THROUGHPUT

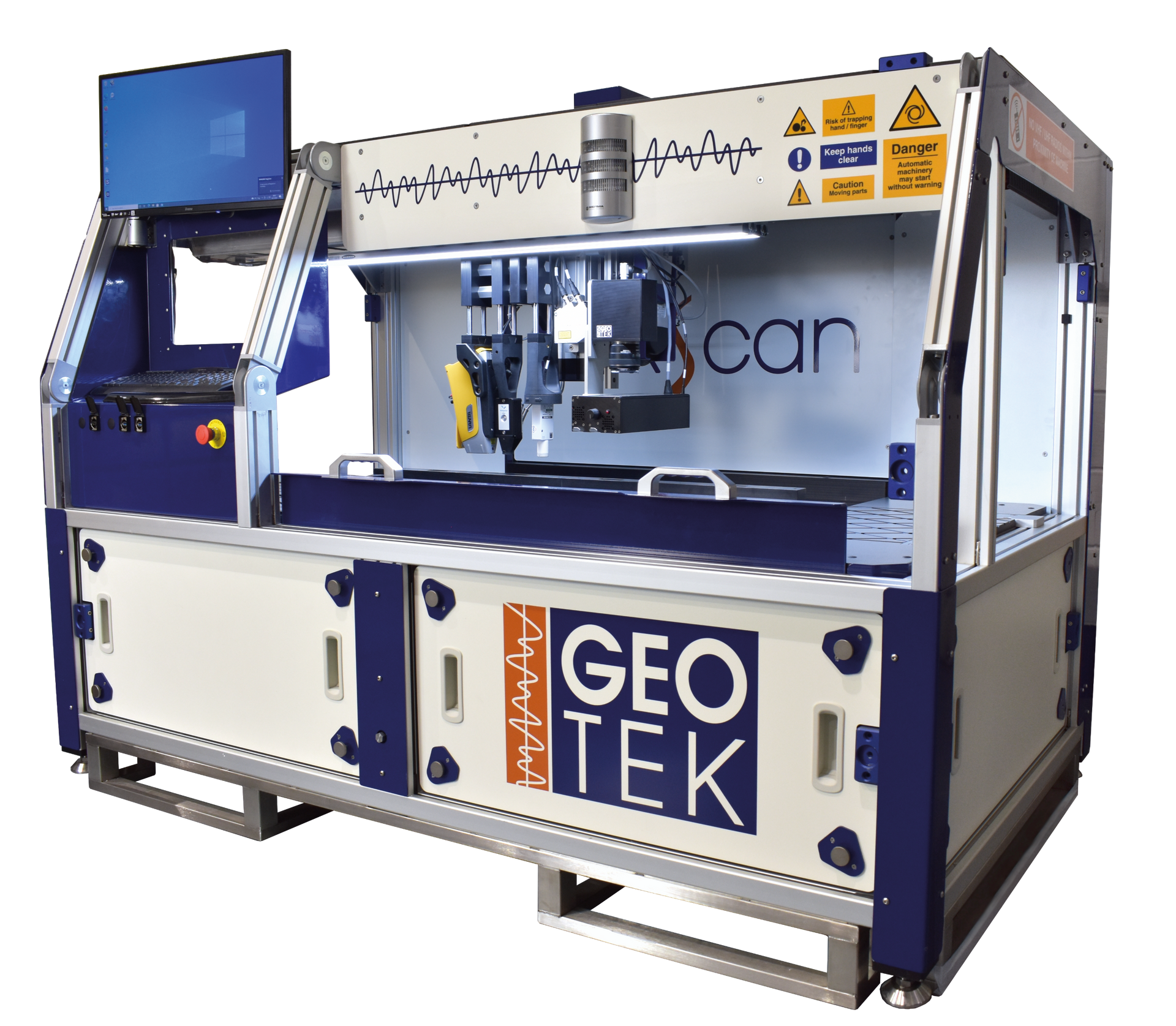

BoxScan solves the often resource-draining practicalities of acquiring laborious handheld logging measurements using pXRF, NIR, cameras, or goniometers by delivering automated and simultaneous acquisition of geotechnical and geochemical parameters from one easy to use, field deployable, core box scanning system.



BoxScan is a modular core scanning platform that allows users to choose the most fit-for-purpose multi-sensor suite for their project. Through the use of dedicated acquisition software, scanning parameters for each box or even each metre of core can be amended so that frequency of measurement, type of measurement or even integration time of measurement can be optimised. As a result, the BoxScan can be set to the optimal throughput speed needed for the project.

  • Field Portable Core Scanning

    BoxScan is small-footprint and fits in the back of a standard 2.4 m bed pick-up truck for easy transport to remote locations. Running on only standard power with no cooling required, and using rugged and reliable handheld field-based sensor technology, BoxScan is designed to operate in the field to provide near-real time results.

  • Remote Installation, Training and Troubleshooting

    Remote location? Want to keep costs down? No problem: BoxScan can be installed remotely. Our dedicated team of experienced geoscientists and support technicians will guide you through the process of unpacking, setting up, and scanning – all remotely.

  • Save on Labour

    Only one field technician is needed to operate BoxScan and they can acquire up to 6 different datasets without manipulating a sensor or the core, reducing disturbance of the core material and human error in the measurement.

  • Automated Quality Assurance and Quality Control

    High-quality data stems from two factors: quality assurance and quality control. To guarantee the best quality data, the BoxScan has repeatable methods and quality checks. Quality assurance is ensured by the automation of the BoxScan scanning equipment. The automation of BoxScan provides repeatable data acquisition and repeatable processing protocols. Quality control is ensured by proper calibration and check protocols, which are integral to BoxScan. QC standards have fixed locations on BoxScan to facilitate automatic measurement, as a result standards are automatically measured on a regular basis, and the resulting data is stored alongside the core data.

  • Core Curation and Depth Control

    All data sets on BoxScan are collected in “logged depth”, which has an instrument depth frame of reference. A separate curation file, relating logged depth to borehole depth, is created using BoxScan software. This curation file is applied to all the BoxScan data files creating borehole depth data. This post-processing depth assignment can be run again at any time in the future if the curation file is updated.

  • Data Output

    All data acquired from each sensor is exported depth-coregistered against borehole depth in flexible, non-proprietary formats, facilitating upload into various software platforms.


    BoxScan datasets can be visualised in a number of different ways, however, most typically downhole logs of the data are produced.
